2016 Breeze Integration Schematic

  1. Last updated
  2. Save as PDF

Diagnostic LED Features

Each SWITCH PANEL and CONTROL PANEL has built-in diagnostic LED indicators. The CHANNEL LED corresponds with the circuit listed on the chart to the left and indicates if the circuit is ON or OFF. The NETWORK LED indicates if the panel has power and whether or not it is communicating with the other panels within the network.

In the event of a switch panel with a NETWORK LED that indicates a fault, unplug the SWITCH PANEL and plug it directly into the NETWORK PORT on one of the CONTROL PANELS. If the SWITCH PANEL LED turns solid green, this could indicate a network wiring issue. Refer to the NETWORK WIRING GUIDE in the previous page.



Network Wiring Diagram


House Pinout


Chassis Pinout


G6 House Panel Lights

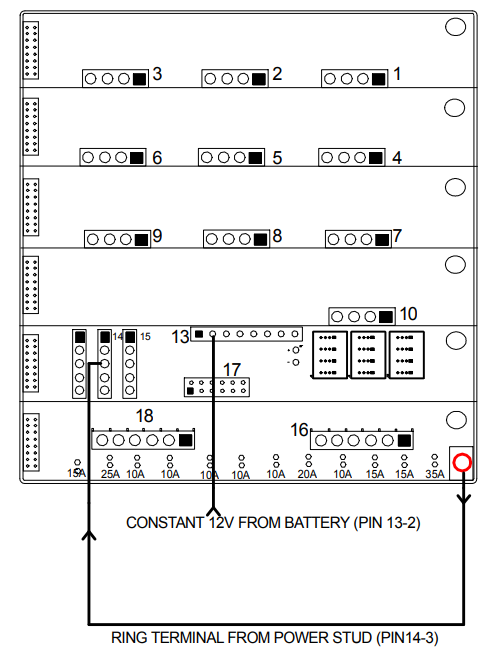

G6 House Panel Breakers


Chassis Breaker Panel


G6 Chassis and Shade Control Module

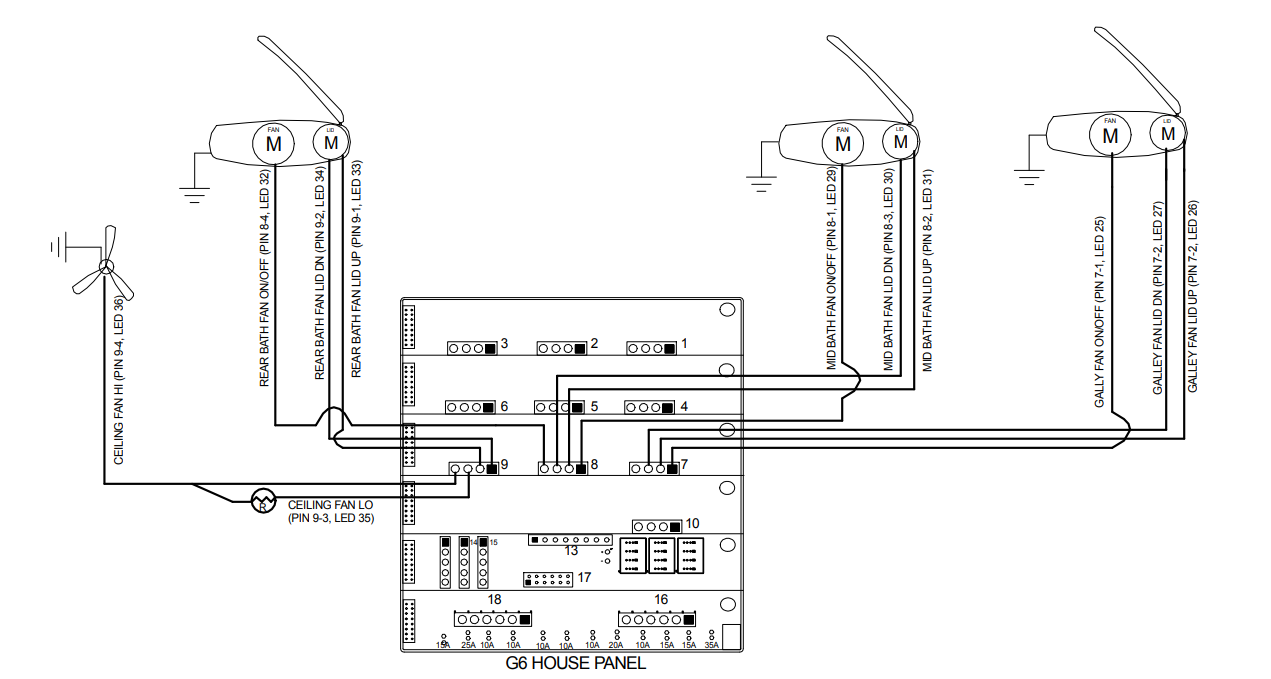

House Fan


FR/RR Slide Control


Tank Monitoring System


Battery Disconnect
