2015 Open Road Integration Schematic

  1. Last updated
  2. Save as PDF

Diagnostic LED Features

Each SWITCH PANEL and CONTROL PANEL has built in LED indicators. The CHANNEL LED corresponds with the circuit listed on the chart to the left and indicates if the circuit is ON or OFF. The NETWORK LED indicated if the panel has power and whether or not it is communicating with the other panels within the network.

In the event of a switch panel with a NETWORK LED that indicates a fault, unplug the SWITCH PANEL and plug it into a different NETWORK LOCATION. This could be where another SWITCH PANEL is plugged into. If the SWITCH PANEL LED turns solid green, this could indicate a network wiring issue. Refer to the NETWORK WIRING GUIDE in the previous page.



Network Diagram


Pinout Diagram


Panel Lights

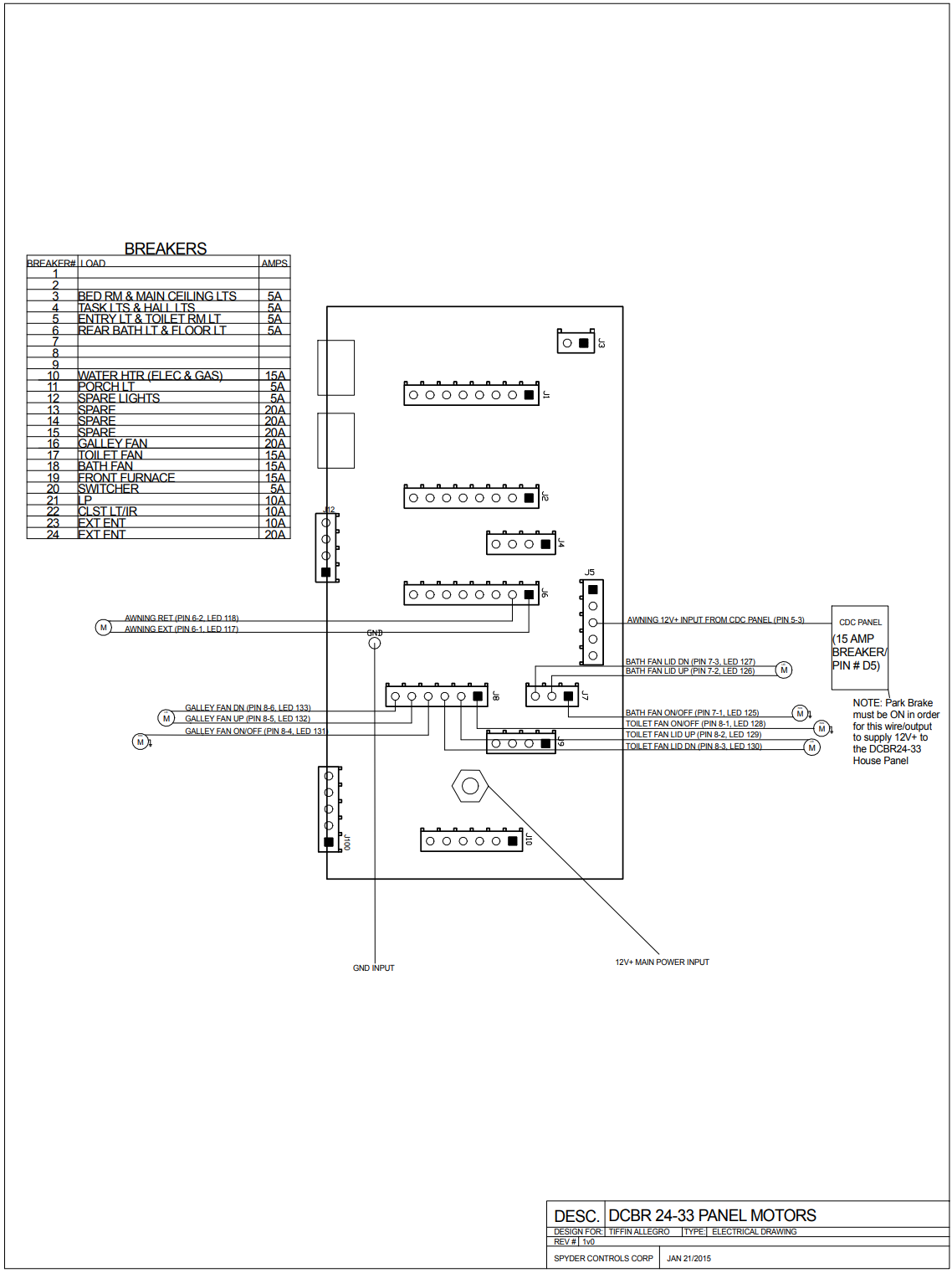

Panel Motors


Panel Slide Control


Panel Lights


Panel Water Heater


DC Panel


CDC Relay Panel
