2015 Breeze Integration Schematic
Diagnostic LED Features
Each SWITCH PANEL and CONTROL PANEL has built in LED indicators. The CHANNEL LED corresponds with the circuit listed on the chart to the left and indicates if the circuit is ON or OFF. The NETWORK LED indicated if the panel has power and whether or not it is communicating with the other panels within the network.
In the event of a switch panel with a NETWORK LED that indicates a fault, unplug the SWITCH PANEL and plug it into a different NETWORK LOCATION. This could be where another SWITCH PANEL is plugged into. If the SWITCH PANEL LED turns solid green, this could indicate a network wiring issue. Refer to the NETWORK WIRING GUIDE in the previous page.


Network Wiring Diagram

House Pinout

Chassis Pinout

G6 House Panel Lights

G6 House Panel Breakers

Chassis Breaker Panel

G6 Chassis and Shade Control Module

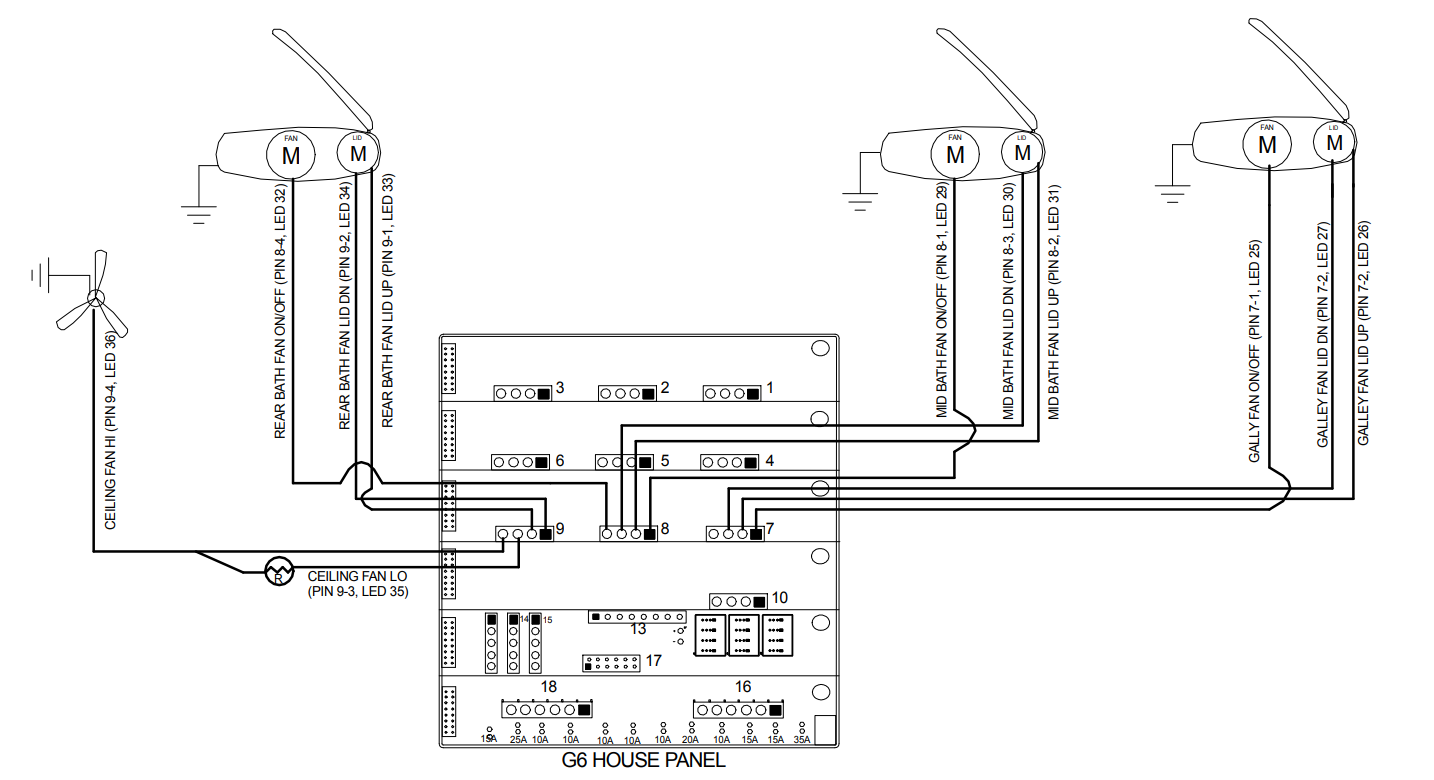

House Fans

FR/RR Slide Control

Tank Monitoring System

Battery Disconnect
