LG UHD AI ThinQ TV

Last updated
Save as PDF

OWNER’S MANUAL
Safety and Reference

LED TV*

* LG LED TV applies LCD screen with LED backlights

Please read this manual carefully before operating your set and retain it for
future reference.

43UP7100ZUF
43UP7560AUD
50UP7100ZUF
50UP7560AUD
55UP7100ZUF
55UP7560AUD
65UP7100ZUF
65UP7560AUD
70UP7070PUE
70UP7170ZUC
70UP7570AUD
75UP7070PUD
75UP7170ZUC
75UP7570AUE
43UP7670PUC
43UP7700PUB
50UP7670PUC
50UP7700PUB
55UP7670PUC
55UP7700PUB
60UP7670PUB
60UP7700PUB
65UP7670PUC
65UP7700PUA
65UP7700PUB
70UP7670PUB
70UP7770PUB
75UP7670PUB
75UP7770PUB
43UP8000PUA
43UP8000PUR
50UP8000PUA
50UP8000PUR
55UP8000PUA
55UP8000PUR
60UP8000PUA
60UP8000PUR
65UP8000PUA
65UP8000PUR
70UP8070PUA
70UP8070PUR
75UP8070PUA
75UP8070PUR
82UP8770PUA
86UP8770PUA

Important Safety Instruction

•• Read these instructions.
•• Keep these instructions.
•• Heed all warnings.
•• Follow all instructions.
•• Do not use this apparatus near water.
•• Clean only with dry cloth.
•• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
•• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
•• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
•• Only use attachments/accessories specified by the manufacturer.
•• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.

•• Unplug this apparatus during lightning storms or when unused for long periods of time.
•• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

By using this product, you agree that all disputes between you and LG arising out of or relating in any way to this product (including but not limited
to warranty disputes) shall be resolved exclusively through binding arbitration on an individual basis. The terms of the arbitration agreement
(including details on the procedure for resolving disputes) is available at www.lg.com/us/arbitration (USA) or www.lg.com/ca_en/arbitration
(Canada).

Title

Warning! Safety instructions
Preparing

- Lifting and moving the TV

- Mounting on the Table

- Mounting to the Wall

- Antenna/Cable

3. Starting TV

- Turning on the TV

- Registering Magic Remote Control

4. Using Remote Control

- Using Magic Remote Control

- Using Remote Control

5. Connections

6. Troubleshooting

7. Specifications

- Open Source Software Notice Information

- Licenses

8. Regulatory

Warning! Safety instructions

Preparing

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

It is recommended to move the TV in the box or packing material that the TV originally came in.
Before moving or lifting the TV, disconnect the power cord and all cables.
When holding the TV, the screen should face away from you to avoid damage.
Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grille area.
Use at least two people to move a large TV.
When transporting the TV by hand, hold the TV as shown in the following illustrations.
When transporting the TV, do not expose the TV to jolts or excessive vibration.
When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.
When handling the TV, be careful not to damage the protruding buttons.

Avoid touching the screen at all times, as this may result in damage to the screen.
Do not place the product on the floor with its front facing down without padding. Failure to do so may result in damage to the screen.
When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

Mounting on the Table

1. Lift and tilt the TV into its upright position on a table.

Leave a minimus of 10 cm (4 inches) space from the wall for proper ventilation

2. Connect the power cord to a wall outlet.

Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product).
If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
Do not use any unapproved items to ensure the safety and product life span.
Any damage or injuries caused by using unapproved items are not covered by the warranty.
Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward after being installed).
Do not fasten the screws with excessive force otherwise they may strip and become loose.

Securing TV to the Wall

1. Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

If there are bolts inserted at the eye-bolts positions, remove the bolts first.

2. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and th eye-bolts on the rear of the TV.

3. Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure t keep the rope horizontal with the flat surface.

Use a platform or cabinet that is strong and large enough to support the TV securely.
Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

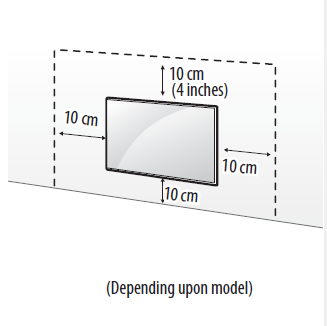

Mounting to the Wall

An optional wall mount can be sued with your LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG's wall mount bracket, use a wall mount where the device is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non-adjustable mount, attach the mount to the wall. Attach the cables to the TV first, then attach the TV to the mount.

Remove the stand before installing the tV on a wall mount by performing the stand attachment in reverse.
For more information of screws and wall mount bracket, refer to the separate purchase.
If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.
Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fail.
When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending upon model).

Wall Mounting Bracket

(Depending upon model)

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

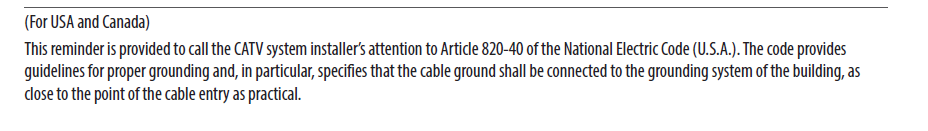

Antenna/Cable

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and an RF cable is optional.

Make sure not to bend the copper wire of the RF cable.
Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.
Use a signal splitter to use 2 TVs or more.
DTV Audio Supported Code: MPEG, Dolby Digital
This TV cannot receive Ultra HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed.

Starting TV

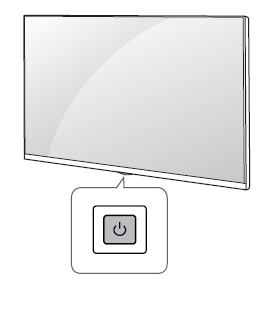

Turning on the TV

You can simply operate the TV functions, using the button.

Using button

Note •• When the TV is turned on for the first time after being shipped from the factory, initialization of the TV may take
approximately one minute.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust the Menu items using the button.

Note •• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
•• The available menus and options may differ from the input source or product model that you are using.
•• New features may be added to this TV in the future.
•• The device must be easily accessed to a location outlet near the access. Some devices are not made by turning on / off
button, turning off the device and unplugging the power cord.

Inserting the battery

(Depending on model)

•• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.
•• Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient
pollution.
•• This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due
to environmental considerations. Please contact your local authorities for disposal or recycling information.
•• Batteries inside or inside the product shall not be exposed to excessive heat such as sunshine, fire or the like.

Registering Magic Remote Control

How to register the Magic Remote Control

How to deregister the Magic Remote Control

Using Remote Control

Using Magic Remote Control

(Depending upon model)
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

Note: To use the button, press and hold for more than 1 second.

Using Remote Control

(Depending upon model)
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

Connections

You can connect various external devices to the TV. For more information on external device’s connection, refer to the manual provided with each
device. Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable.

Troubleshooting

Cannot control the TV with the remote control

Check if anything such as tape has been placed over the receiver.
Check if there is any obstacle between the product and the remote control.
Replace the batteries with new fresh ones.

No image display and no sound is produced.

Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly

Check the power control settings. The power supply may be interrupted.
Check if the auto-off function is activated in the setting menu.
If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

Abnormal Display

If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with the TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV's performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.
This panel is an advanced product that contains millions of pixels. In a very few cases, you could see fine dots on the screen while you're viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.
Displaying a still image for a prolonged period of time may cause an image sticking. Avoid displaying a fixed image on the TV screen for an extended length of time.

Generated Sound

Cracking no A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.
Electrical circuit humming/panel buzzing A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. If varies depending upon the product. This generated sound does not affect the performance and reliability of the product.

When cleaning the product, be careful not to allow any liquid or foreign objects to enter the gap between the upper, left or right side of the panel and the guide panel, (Depending upon model).
Make sure to wring excess water or cleaner from the cloth
Do not spray water or cleaner directly onto the TV screen.
Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.

Specifications

Product specifications may be changed without prior notice due to upgrade of product functions.
Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only).
The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).
•• For information of the power supply and power consumption, refer to the label attached to the product.
-- The typical power consumption is measured in accordance with IEC 62087 or each country’s energy regulations.
* On some models, the label is inside the external device connection terminal cover.
* Depending upon the model or country, the typical power consumption may not be on label.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit https://opensource.lge.
com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of
media, shipping, and handling) upon email request to opensource@lge.com.
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.
