04 2027 Zephyr Heating and Air Conditioning
AQUA-HOT HEATING SYSTEM:
The Zephyr features an Aqua-Hot heating system (Figure 4-1) that provides a continuous, on-demand supply of domestic hot water, as well as interior zone. Both heating features are accompanied by a unique VDC-powered diesel-fired burner, and a VAC-powered electric heating element (120 VAC). These two heating sources maintain the temperature of the Aqua-Hot’s solution of water and anti-freeze. If interior heat and hot water are both needed at the same time, the hot water will take precedence over the interior heat, causing the interior heat to shut down until the water flow is turned off from the water sources.

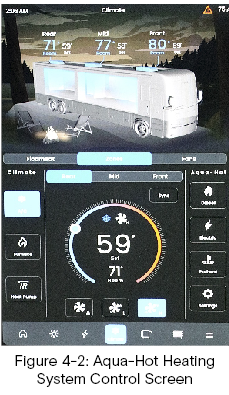

In the Zephyr, the controls for the Aqua-Hot heating system are integrated with the Spyder Controls System (Figure 4-1). To activate the Aqua-Hot heating system, select the Aqua-Hot option from the Spyder Controls System home screen. By activating these functions, a supply of hot water as well as interior heat can be provided. The surge tank (Figure 4-2), which is located in the exterior basement, must be routinely inspected to make sure the anti-freeze fill line stays in the acceptable zone. If the anti-freeze becomes low, you must add the recommended anti-freeze stated in the Aqua-Hot owner’s manual.
If anti-freeze is totally depleted from the surge tank, a switch will be released inside the main Aqua-Hot tank, disabling the system from operating. Anti-freeze will then have to be added to the tank to reactivate the switch and allow the system to operate. If batteries become discharged and the Aqua-Hot system is activated, the system will automatically shut down before the batteries are totally discharged. Once power is restored to the batteries, the system must be reset by depressing the reset button on the black panel of the surge tank. For detailed operations on using the heating system, refer to the owner’s manual in the Tiffin Knowledge Base Owner’s Hub.
AIR CONDITIONING SYSTEM:
The factory-installed air-conditioning system is designed for 120 VAC power supplied either from the external power cord or from the generator. For the best cooling scenarios, park the motorhome in a shaded location whenever possible and close the shades on the windows that are exposed to direct sunlight.
The air-conditioned, cooled air is emitted through the vents (Figure 4-3), which are located in the ceiling throughout the entire motorhome along the passenger side. The return air vents run parallel, front to back, on the ceiling along the driver’s side of the motorhome. The return vents (Figure 4-4) are similar to the air conditioning vents, but they contain foam filters that keep dust from flowing back through the air conditioning system. The return filters (Figure 4-5) can be easily removed and cleaned with warm water and a mild cleaning solution. To remove the filter, pull the vent down and lift the filter from inside the opening.
AIR CONDITIONING CONTROLS:
The following is a brief overview of how best to operate the air conditioning (A/C) controls. The A/C controls are integrated into the Spyder Controls Multiplexing System and can be found on any of the touch screens. To access the A/C controls, touch the SNOWFLAKE icon located on the 10” touch panel in the hallway, or use one of the 7” or 5” touch screen panels that are located throughout the motorhome. To activate the desired A/C, select A/C on the touch panel. Once pressed, the A/C button will begin flashing. The right side of each A/C control panel will indicate the fan speed (HIGH, LOW, or AUTO). The default setting for the fan speed is AUTO. This can be changed by pressing LOW or HIGH. When the A/C is in the AUTO mode, a fan icon below the arrows will indicate the fan speed. In AUTO mode, once the temperature reaches the set point, the compressor (indicated by a blue snowflake changing to gray) will cut off first, and then the fan will shut off after. If the fan speed of HIGH or LOW is selected, the compressor will shut off, but the fan will stay on when the set point for temperature has been reached.
NOTE: If the motorhome temporarily loses its 110V power, the air conditioning system will resume operation at its last programmed setting when power is restored. If 12V power is lost, the thermostat settings will turn off, and the climate control must be turned back on.
NOTE: The A/C and heater cannot operate at the same time.
THERMOSTAT ON SPYDER CONTROLS SYSTEM:
The following is an overview of how best to use the thermostat on the Spyder Controls System (Figure 4- 6). For more detailed instructions, refer to the thermostat literature in the Owner’s Information Package.
1. Push the SNOWFLAKE button. This button will bring up a touch screen to select the desired function (e.g., A/C, FURNACE, or HEAT PUMP).
NOTE: In the A/C mode, there will be a delay of several minutes before the refrigerant in the air-conditioning system begins to cool the motorhome, as the compressor is on a time delay circuit and it must also cool the ductwork to the vents first.
2. Select the Fan Mode operation (AUTO) or set the Fan Speed operation (LOW or HIGH) to select the fan speed desired.
3. On the temperature display, Press the White Dot to adjust the desired temperature for the motorhome.
NOTE: When the fan is on AUTO mode, the fan will turn on and off when the temperature reaches the desired setting. When the fan is on LOW or HIGH mode, it will continue to run even though the compressor cycles on and off when it reaches the desired temperature. If the motorhome temporarily loses its 110V power, the air conditioning system will resume operation at its last programmed setting once power is restored. If 12V power is lost to the thermostat, it will automatically reset to 72 degrees once power is restored.
NOTE: There is a thermostat control for each air conditioning unit.
HEAT PUMP CONTROLS:
To activate the optional heat pump (Figure 4 7), set the thermostat to the HEAT PUMP mode and select the desired temperature.
NOTE: If the setting on the thermostat and the room temperature are more than five degrees apart, the Aqua-Hot heating system will automatically turn ON with the heat pump. Once the room temperature reaches the desired level specified on the thermostat setting, the furnace will cut off and the heat pump will maintain the heating of the coach. The heat pump is controlled by each individual thermostat.
If the external temperature falls to 45 degrees Fahrenheit, the heat pump will become inoperative, and the gas furnace will begin to operate automatically. On the A/C controls page, press HEAT PUMP to activate the heat strip on the rooftop A/C unit.
NOTE: After a slight delay, the heat pump icon will begin to flash. When the heat strip on the rooftop A/C engages, the heating symbol beneath the arrows will change to red, and the fan icon will indicate the fan speed.
NOTE: The heat pump refers to the electric strip on each exterior rooftop A/C. The FURNACE button refers to the Aqua-Hot.
