Valid Trueline Leveling System
Access a printable PDF copy here: Valid-Leveling-System-with-ERE.pdf
LEVELING SYSTEM

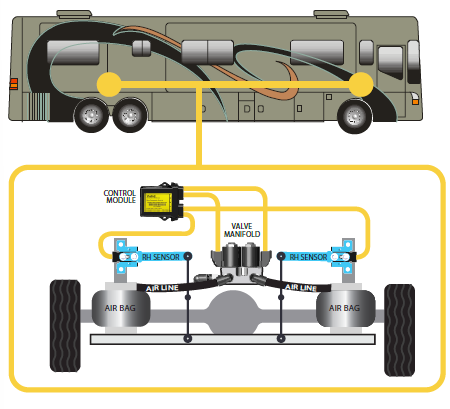

Valid’s Trueline Leveling System is an automatic one-step leveling system. Accelerometers along three separate axes of the vehicle chassis provide data for both level and twist. Using this data, the system then accurately levels the vehicle while removing chassis twist.
HIGHLIGHTS
Valid’s Leveling System can level any RV that is
equipped with an airbag suspension.
• Leading-edge accelerometer technology and exclusive
features offer stress-free leveling and eliminate
damaging chassis twist
• Control modules measure chassis twist and convey
information to the actuator, which then levels the
vehicle
• Vehicle height can be adjusted after leveling

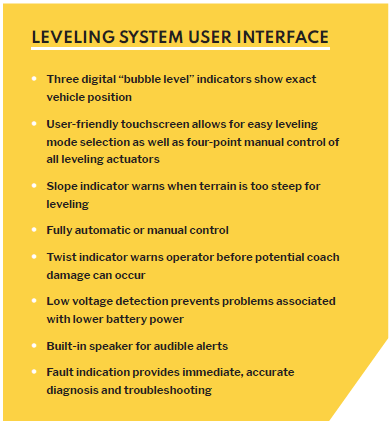

• Touchscreen provides operator control interface and
visual feedback on the vehicle’s current status
ELECTRONIC RIDE ENHANCEMENT
Valid’s Electronic Ride Enhancement System augments the Trueline Leveling system with additional ride height monitoring features. .
HIGHLIGHTS
• Real-time assessment of vehicle status with automatic
adjustments that ensure a safe and comfortable ride
• Reduced air consumption (up to 85%) compared to
standard ride height valve suspension systems
• Quicker leveling than a standard leveling system
• Accurate re-level function with constant level and
height maintenance
• Set your preferred entry step height after leveling
