Mobileye 8 Series User Manual

SAFETY INFORMATION

Before using the Mobileye 8, please read the instructions and warning in this user manual carefully.

Warning! The Mobileye 8 IS Not A Substitute For Safe And Alert Driving.

Do Not Attempt To Change Settings On The Mobileye 8 While Driving!

Do not press any Mobileye 8 buttons before understanding their functions. Subject to all the terms of this user manual, by installing the Mobileye 8, your acknowledge and agree to operate the Mobileye 8 in accordance with the important Safety Information and the Installation and Safety Instructions set forth below. If you do not agree to these terms, please return the Mobileye 8 in its original packaging to the dealer within 30 days of purchase to receive a full refund.

The Mobileye 8 represents state-of-the-are innovation in computer vision and other technologies, the system is based on artificial intelligence technology trained to detect vehicles, pedestrians, certain lanes and/or specific traffic signs. The system's functionality is dependent upon minimum light conditions and does not guarantee definite detection, nor does it guarantee warning over all potential driving and/or road related risks.

• As a general rule, the system's detection and response capabilities are influenced by various factors including, but not limited to , height, form, shape, movement (including lib movement), contours, angle of movement, degree of prominence in relation to the environment, distance from the vehicle, speed, driver behavior, and more. In addition, road, weather, light (or lack thereof), visibility and other conditions can adversely affect the Mobileye 8 detection and response capabilities in regard to any and all of its functions and alerts as specified above and below. Any conditions that block the camera's view, partially or fully, will result in no or reduced functionality of these functions and alerts. You should always ensure that the vision sensor has a clear field of view.
• The Mobileye 8 is not an automated driving system and does not act as a substitute for any aspect of driver vehicle control or safe driving practices. Drivers are strongly cautioned not to rely on the Mobileye 8 as a substitute , to even the slightest degree, for the exercise of due caution in driving safely and avoiding accidents.
• The Mobileye 8 does not "see" better than the driver; it is designed to assist drivers by providing warnings solely in specific situations. It is the driver's responsibility to act responsibly and with caution, to show awareness at all times and rely on their vision and hearing while driving.
• Accordingly, drivers should not rely on the Mobileye 8 to assure their driving safety, but rather should continue to rely on safe driving practices.
• The Mobileye 8 detects fully visible rear-ends of vehicles. Therefore, crossing, oncoming, and passing vehicles cannot be detected.
• The Mobileye 8 is designed for driving along paved roads with lanes that are clearly marked.
• Although the Mobileye 8 detects multiple signs in various territories, it may not detect all existing signs in all territories. Drivers should exercise caution in using the Mobileye 8 display unit. Driver attention should always remain focused on the road, including while looking at the Mobileye 8 display.
• The device emits minor units of radiation during its use in accordance with the applicable laws and regulations.
• Every effort has been made to ensure the accuracy of all information in this user manual. However, Mobileye Vision Technologies Limited ("Mobileye") makes no express or implied warranty or representation based on the enclosed information Mobileye reserves the right to alter the equipment specifications and descriptions in this publication without prior notice.
• Any errors or omissions may be reported to Technical Support of Mobileye.
• Global Support Email: support@Mobileye.com

INSTALLATION AND SAFETY INSTRUCTIONS

• The of Mobileye 8 installation must be performed by a Mobileye authorized installer.
• The of Mobileye 8 should not be transferred between vehicles, other than by an authorized Mobileye installer.
• The of Mobileye 8 should only be operated with 12VDC-24VDC power
• Do not cover or obstruct the of Mobileye 8 vision sensor, the EyeWatch display, the control unit or the GPS unit.
• Do not use the of Mobileye 8 for any purposes other than those described in this user manual.
• Features and functions noted as "Optional" may not be available for all vehicle types. These features and functions may also require additional equipment and/or involve extra cost. Contact Mobileye or an authorized dealer for mor information.
• The of Mobileye 8 cannot be installed in all vehicles. Contact Mobileye or an authorized dealer to determine if a system can be installed in a particular make and model.

DATA COLLECTION

• To facilitate the provision of certain advanced features, including the advanced driver assistance system (ADAS) safety features referred to in this User Manual ("Safety Alerts"), the Mobileye 8 Connect models collects and transfers to Mobileye road-related data and other relevant data. This data can include, for example, the location of traffic signs, traffic lights, and lane markings; details of safety alerts it generated; and the data collection time and location information at which they were collected. Collection of the aforementioned data occurs in the background with no effect on the proper operation of the of Mobileye 8 Connect safety features. To the contrary, it allows us to enhance, improve and develop our products' and services' performance.
• For more information about the data we collect, how the data are used and disclosed, and contact details for any further information, refer to the "Privacy and Your Information" notice available on our website, at: https://www.mobileye.com/privacy-policy/.Mobileye may update this notice from time to time.
• By installing and/or using this of Mobileye 8 Connect, you acknowledge and agree that of Mobileye may collect the aforementioned data through the of Mobileye 8 Connect, and that Mobileye owns and shall at all times retain all right, title and interest in and to any such data collected.

CELLULAR

• The of Mobileye 8 Connect models are equipped with a cellular module and antenna.
• Do not insert or remove the SIM card when the of Mobileye 8 Connect is powered on.
• Do not cut or modify the SIM card as the of Mobileye 8 Connect will not communicate with the card in this situation.
• Make sure that the GPS unit is attached to the windshield and faces outwards.

OVER THE AIR

The Mobileye 8 Connect may receive and install over-the Air software updates that add new features and enhance existing ones.

• The over -the-air releases will be pursuant to Mobileye's discretion and without further notice.
• The over-the-air might include different settings, sensitivities, software modifications and/or new features.
• Some over-the-air features may only be available upon subscription and payment of a fee.

TURNING ON THE MOBILEYE 8

Mobileye 8 is automatically activated upon vehicle ignition. After system activation, when the Mobileye 8 EyeWatch main screen appears, this indicates that the system is now fully functional.

FCW

Forward Collision Warning

UFCW

Urban Forward Collision Warning

PCW

Pedestrian & Cyclist collision Warning

LDW

Lane Departure Warning

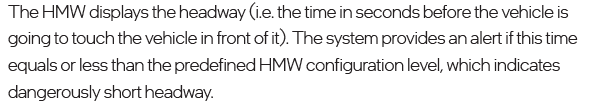

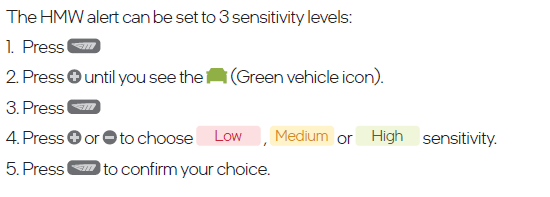

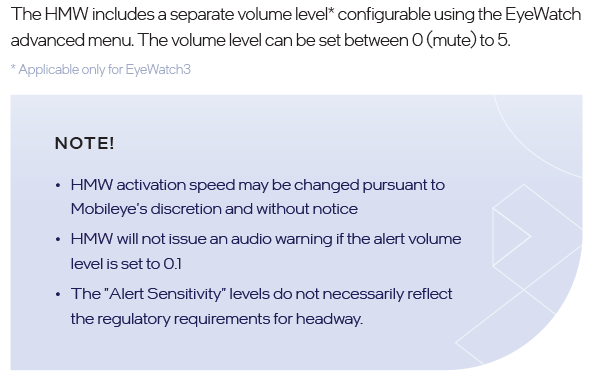

HMW

Headway Monitoring Warning

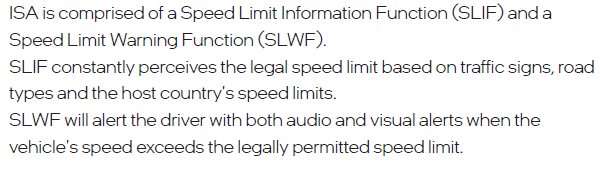

ISA

Intelligent Speed Assistance

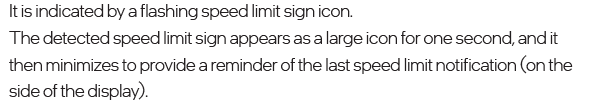

TSR & SLI

Traffic Sign Recognition & Speed Limit Indication

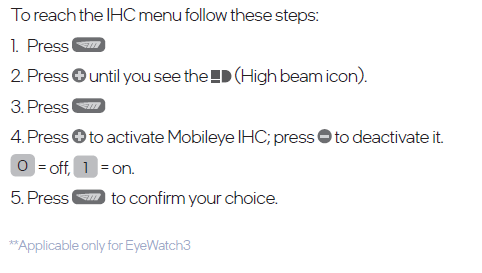

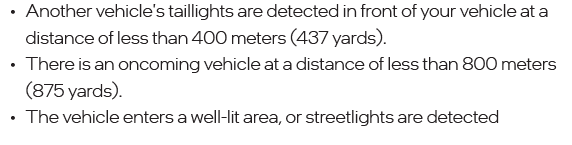

IHC

Intelligent High-Beam Control

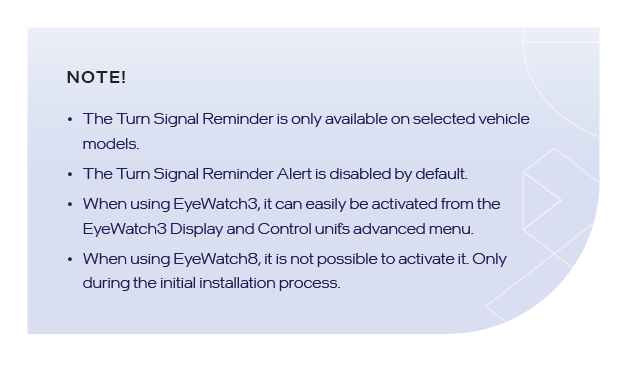

Turn Signal Reminder

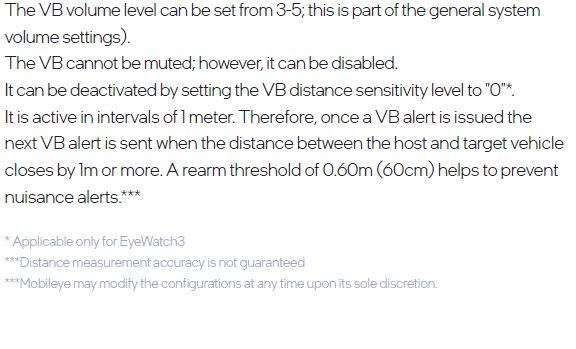

VB

Virtual Bumper

EYEWATCH CONTROL PANEL

EYEWATCH ADVANCED MODE

EYEWATCH ICONS

ISA STATE MODE

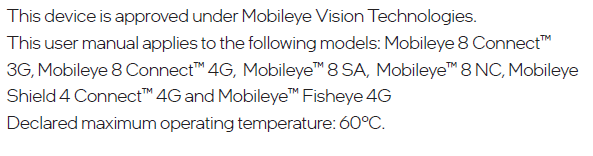

SAFETY AND WARRANTY
